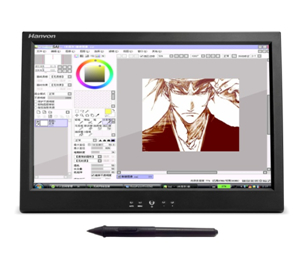

汉王手写液晶屏ESP1910
硬件优势
便捷，笔到之处就显示书写笔迹，所写即所见，手眼合一。
|
显示屏描述/Panel Description |
|
|
显示屏尺寸/Panel Size |
18.95Inch |
|
显示屏类型/Panel Type |
TFT LCD |
|
屏幕比率/Display Ratio |
16:9 |
|
AA区/Active Area |
408.24X255.15mm |
|
像素/Pixels |
1440*900 |
|
点距/Pixel Pitch |
0.2835mmX0.2835mm |
|
亮度/White Luminance（TYP） |
250cd/m² |
|
颜色/Color |
16.7M Colors |
|
响应时间/Response Time |
5ms |
|
可视角度/Viewing Angle |
Horizontal 170°，Vertical160°@CR≥10 |
|
触控描述/Touch Description |
|
|
触控技术/Touch Technology |
Electromagnetic Resonance Without Battery |
|
分辨率/Resolution |
5080LPI |
|
压感/Pressure Level |
2048 |
|
报点率/Report Rate |
200pps |
|
精准度/Accuracy |
±0.5mm（Center），±1mm（Edge） |
|
倾斜角度/Tilt Angle |
±45°from Vertical |
|
感应高度/Sensor Height |
10mm |
|
接口/Interface |
USB |
|
操作系统/Support OS |
WinXP、Vista、Win7 、Win8 or MAC OS |
|
笔描述/Pen Description |
|
|
类型/Type |
Wireless Pen without Battery |
|
按键/Press Key |
Upper Key（Mouse Right-Key Function） |
|
笔尖/Pen Tip |
Switch Freely |
|
重量/Weight |
20g |
|
电源/Power Supply |
|
|
电源类型/Power Supply Type |
External DC Power Adapter |
|
输入电压/Power |
110V-220V |
|
输出电压电流 |
12V 3A |
|
功耗 |
低于20W |
|
接口/Interface |
|
|
电源接口/DC Jack |
DC Jack*1 |
|
触控接口/Touch |
USB*1 |
|
输入接口/Video Input |
VGA IN*1，DVI*1，HDMI*1 |
|
操作控制/Operation Control |
|
|
OSD |
Chinese/English |
|
按键/Keys |
Power On/Off、Up/Down、Menu |
|
其他/Others |
|
|
外形尺寸/Dimension |
454(L)*320(W)*51(H)mm |
|
净重/Net Weight |
4kg |
|
毛重/Gross Weight |
5kg |
|
工作温度/Working Temperature |
0~65℃ |
|
工作湿度/Working Humidity |
20~80% |
|
储存温度/Storage Temperature |
-10~80℃ |
|
储存湿度/Storage Humidity |
10~90% |
|
包装清单 |
|
|
手写屏 |
1台 |
|
手写笔 |
1支 |
|
VGA线 |
1条 |
|
电源适配器 |
1套 |
|
USB线 |
1条 |
|
光盘 |
1片 |
|
说明书 |
1本 |
