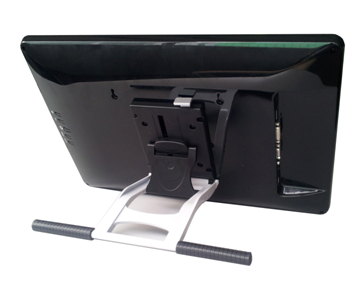

汉王手写液晶屏ESP2210
硬件优势
的便捷，笔到之处就显示书写笔迹，所写即所见，手眼合一。
|
|
产品型号/Product Model |
ESP2210 |
|
显示屏尺寸/Panel Size |
21.50" |
|
|
显示屏类型/Panel Type |
LED |
|
|
屏幕比率/Display Ratio |
16:9 |
|
|
有效显示区/Active Area |
476.64X268.11(mm) |
|
|
分辨率/Resolution |
1920*1080 |
|
|
点距/Pixel Pitch |
0.2475 X0.2475(mm) |
|
|
亮度/White Luminance |
250cd/m² |
|
|
对比度/Contrast Ratio |
1000:1 |
|
|
颜色/Color |
16.7M Colors |
|
|
响应时间/Response Time |
5ms |
|
|
可视角度/Viewing Angle |
Horizontal 170°，Vertical160°@CR≥10 |
|
|
背光寿命/Backlight life |
30000小时（25℃±2℃） |
|
|
表面材质/Surface Treatment |
全屏钢化玻璃Tempered Glass |
|
|
|
触控方案/Touch Solution |
电磁感应式/Electromagnetic Touch |
|
解析度/Digitizer Resolution |
5080lpi |
|
|
压力感应/Pressure (Full Level) |
2048Level |
|
|
读取速度（点/秒）/ |
200pps |
|
|
Report Rate Speed(RRS)(point/second) |
||
|
精准度/Accuracy |
±0.5mm（Center），±1mm（Edge） |
|
|
电磁笔/Electromagnetic pen |
高精度电磁笔 |
|
|
笔倾斜角度/Pen tilt Angle |
+/- 45° |
|
|
感应高度/Sensor Height |
5-15mm |
|
|
类型/Type |
无线无源电磁笔Wireless& Battery Free Pen |
|
|
按键/Press Keys |
Upper Key（Mouse Right-Key Function） |
|
|
笔尖/Pen Tip |
可更换Switch Freely |
|
|
重量/Weight |
15g |
|
|
|
电源/Power Supply Type |
External DC Power Adapter |
|
输入电压/ Input voltage |
110V-220V 50/60Hz |
|
|
输出电压电流/Output Voltage and Current |
12V 3A |
|
|
功耗/Power Consumption |
30W |
|
|
电源接口/DC Jack |
DC Jack*1 |
|
|
触控接口/Touch Interface |
USB*1 |
|
|
输入接口/ Input Interface |
VGA IN*1，HDMI*1 |
|
|
输出接口/ Output Interface |
VGA OUT*1 |
|
|
OSD |
Chinese/English |
|
|
按键/Keys |
Power On/Off、Up/Down、Menu、VGA Out |
|
|
外形尺寸(mm)/Dimension |
560*380*25mm |
|
|
主机重量(毛重)(Net/Gross) |
4KG/- |
|
|
操作系统支持OS |
Windows XP/7/Vista/8 or MacOS |
|
|
工作温度/湿度 Operation Temp/ Humidity |
0~65℃/10~90%（无结露） |
|
|
储存温度/湿度 Storage Temp/ Humidity |
-20~80℃/5~95%（无结露） |
|
|
产品认证/Certification |
CCC, CE, FCC, RoHS |
产品上市时间：2014年3月
